Loopco 12" Slitting Line

12" x 4" Slitting Line
- CRS, HRS, Stainless, Galvanized
- Right To Left
- 50,000 PSI
- .015-.125"
- 8,000 LB Max Coil Wt.
- 52" OD
- 16-20" Entry & Exit
- 400/800 FPM, Build Up To 1200 FPM

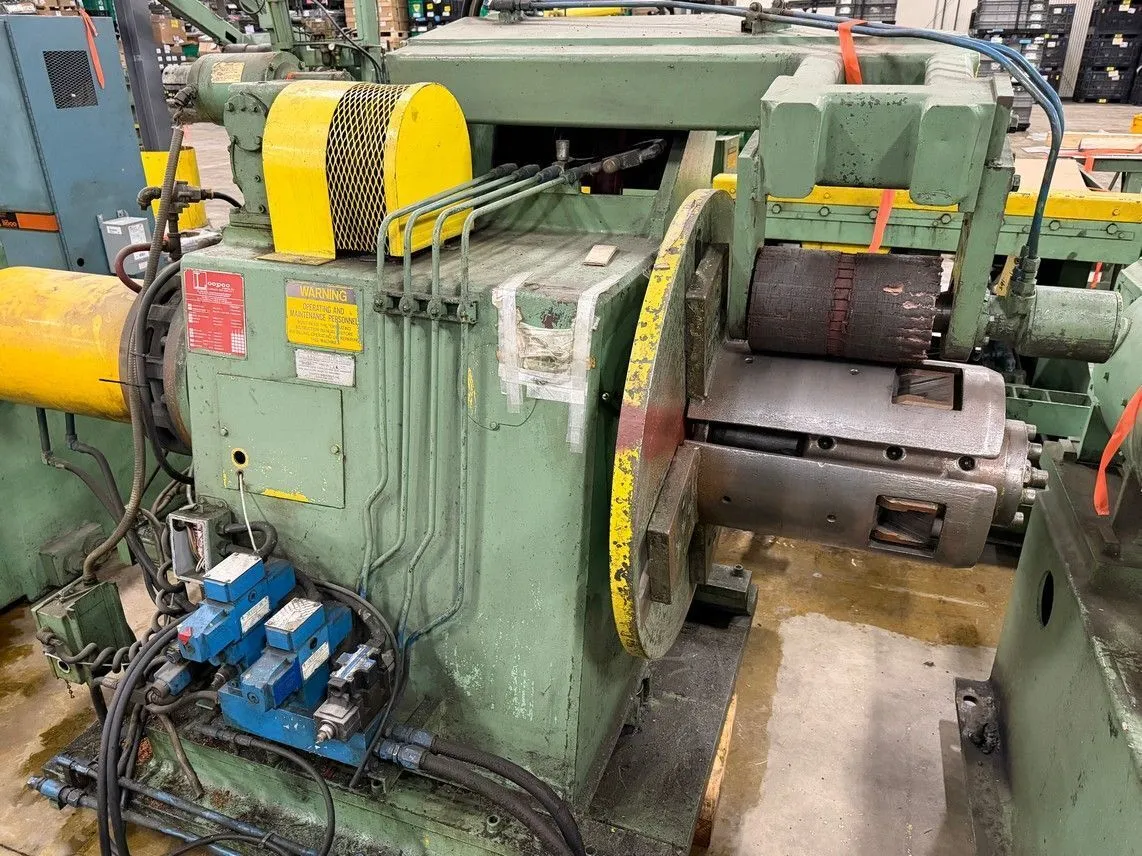

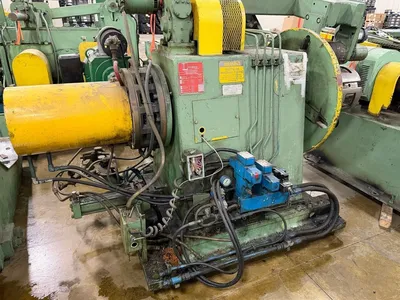

- Uncoiler
Hydraulic Expansion & Slide Base
Attached Holddown Roll

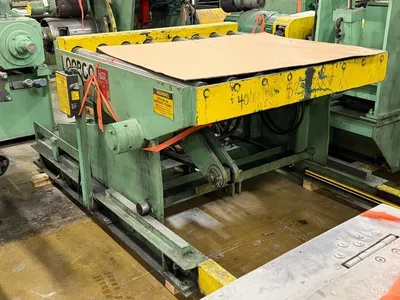

- Peeler Table

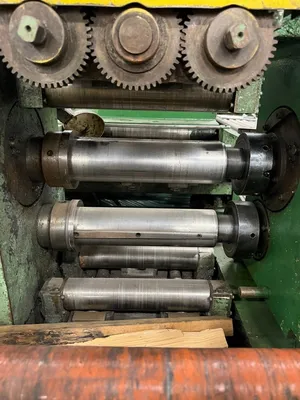

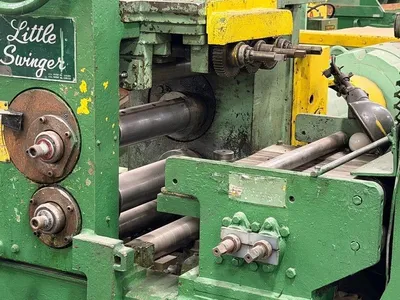

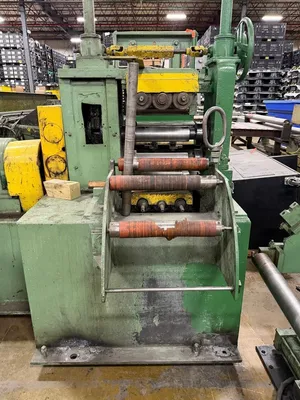

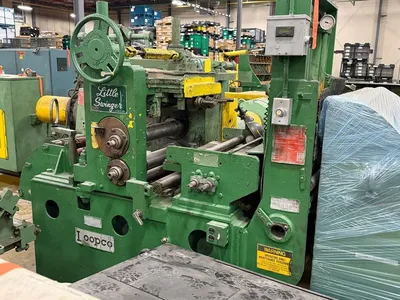

- Swinger Slitter Head
Entry Pinch Roll
Hyd Crop Shear
Edge Guide
4" Dia Arbor Ring Slitter

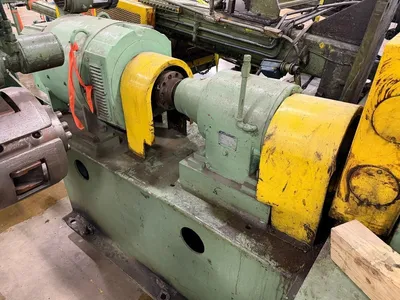

50 HP DC Motor
Pit Entry Rolls
Asko Tooling
- Pit Table

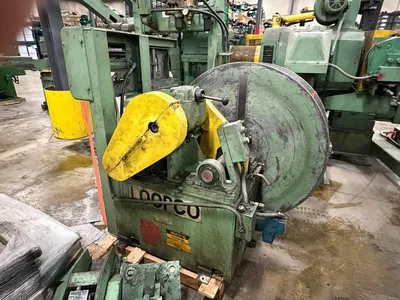

- Scrap Winder
Hydraulic Oscillation
5 HP DC Motor

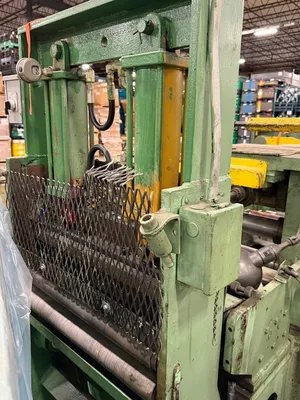

- Tension Stand
Pit Rolls
Separator Bar
Drag Wipe Tension Pads

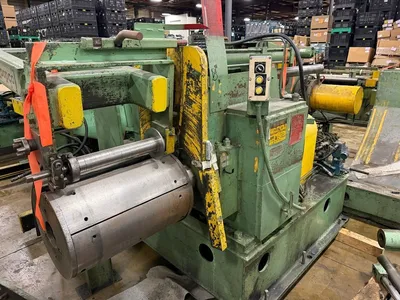

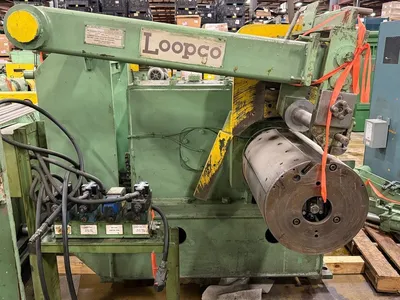

- Recoiler
Hydraulic Grip & Expansion
16" ID
Attached Overarm Separator Bar
60 HP DC Motor

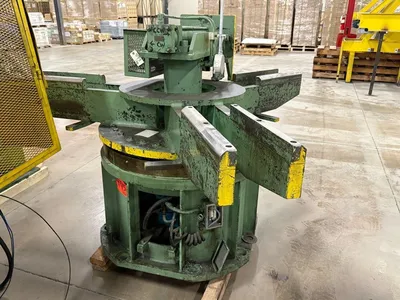

- 3 Arm Turnstile
6 1/2" C-Hook Slot
Hyd Pushoff
Hyd Rotation

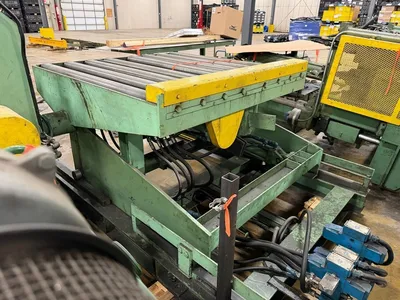

- 90 Degree Downlayer
Hydraulic Travel
Horn To Fit Turnstile Slot

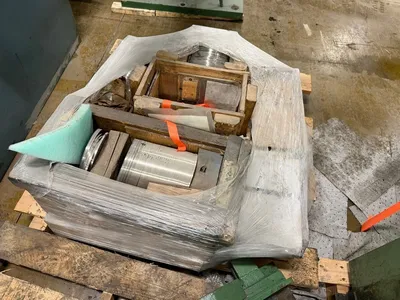

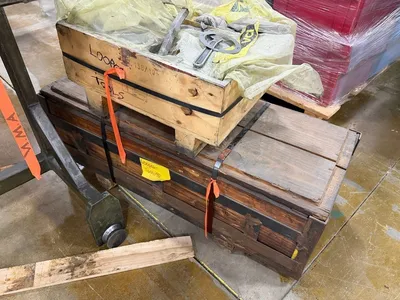

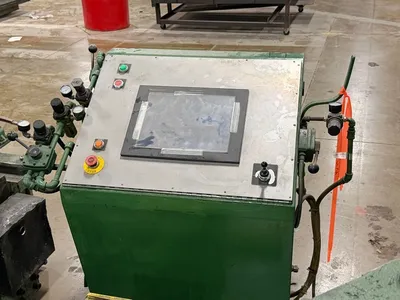

Slitter Tooling, Overarm Tooling Nidec DC Drives, Central Hydraulic Unit, Operators Control Panel
