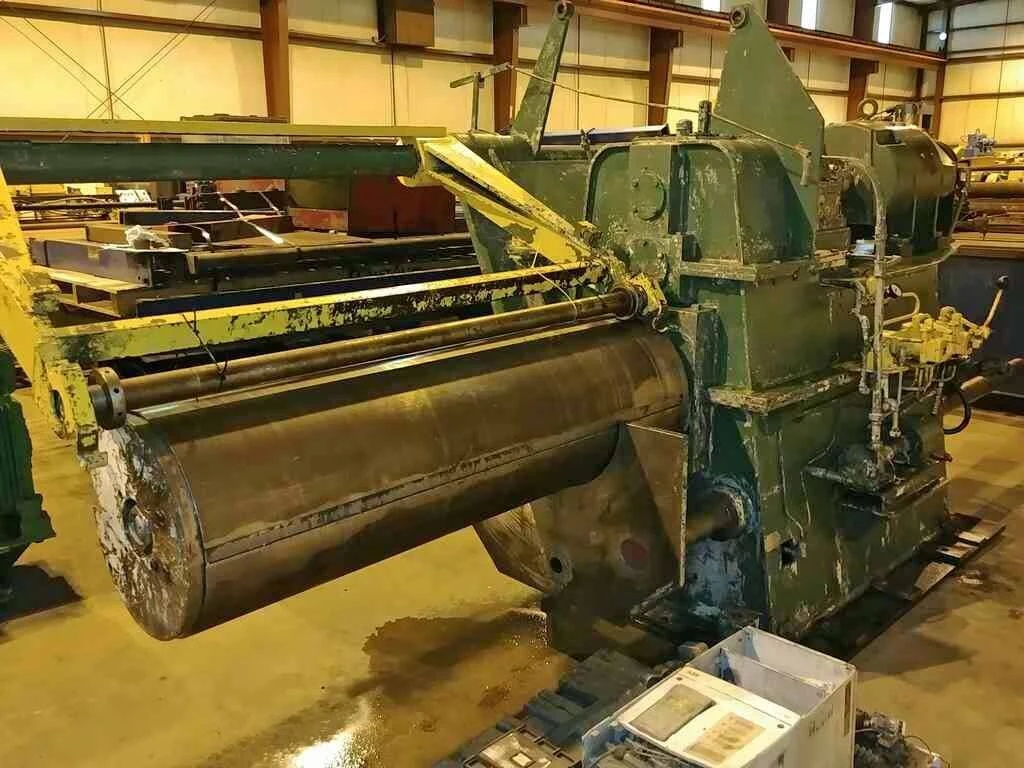

60" 40,000 LB Paxson Recoiler

-Capacity: 40,000 lb. x 60"
-20" Dia. x 64" Face Drum
-Powered Clamp & Expansion
-Gripper opens to 0.312"
-10.5" Dia. Main Shaft
-Hydraulic Pushoff
-Overarm Separator
-Passline: 34.5" from Floor to Center of Drum
-50 HP DC Motor, 1750 RPM, 550V
with Electric Holding Brake
-Main Gearbox w/40:1 Ratio (Approx.)
-Philadelphia 2 Speed Reducer with 1.25:1 and 2.41:1 Ratios
-Line Speed: 95/180 FPM (Bare Drum Speed)
285/540 FPM @ 60" O.D.
-AC Motor for Lube Pump
-Line Direction: Right to Left
