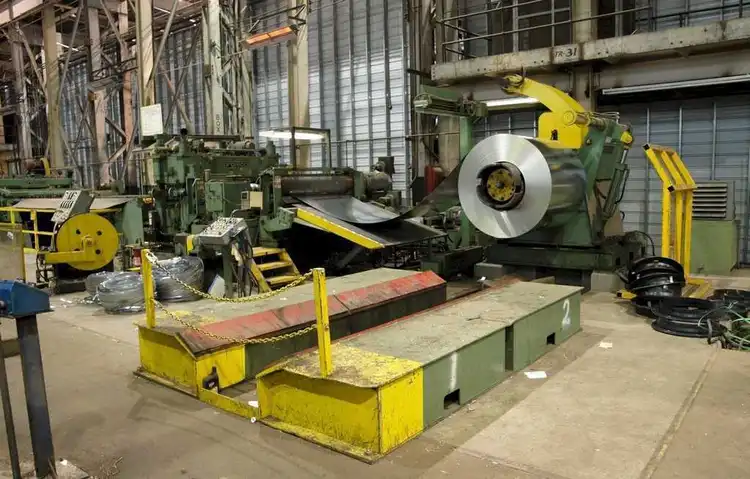

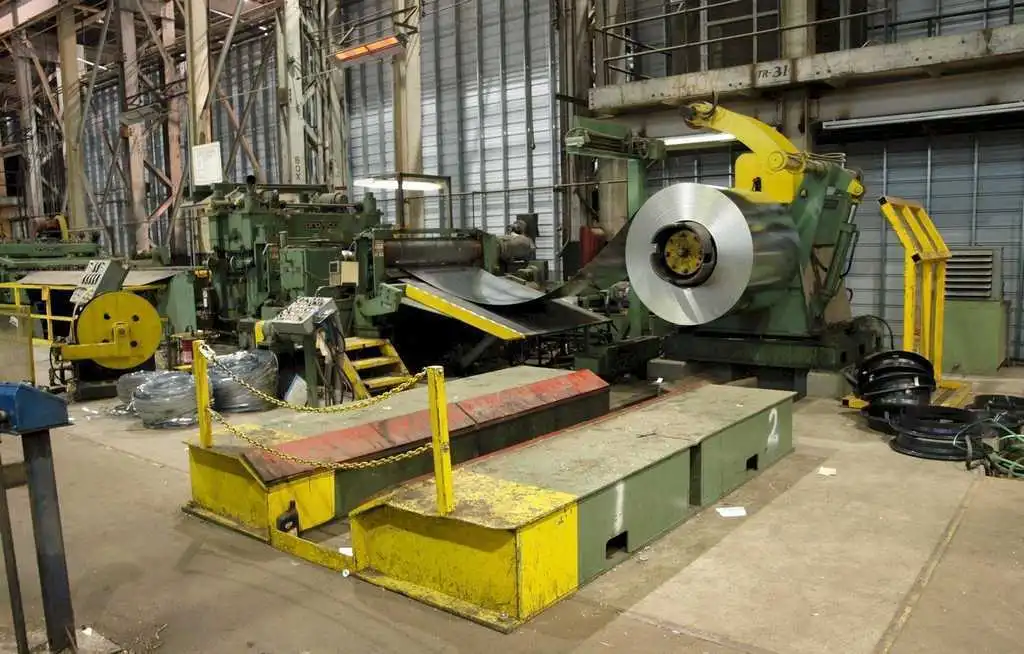

60" Cut To Length Line

-Entry Coil Car:
Pit Type

-Pro Eco Uncoiler:
Hydraulic Expansion
Pumpkin Tooth Mandrel
Powered Holddown Roll
Threading Drive
Air Clutch and Brake
Sliding Base

-North American Edge Guide System:

-Peeler Table:
Model: PB-104
Driven Pinch Rolls

-Edge Trimmer:
Double Stub Type
Powered Width adjustment on Heads

-Scrap Winder:
Hydraulic Motor Powered
Oscillate Wind
Powered Opening for Scrap Dump

-Pro Eco Leveler: 6 HI
Model L-19-1.75-7-60-6
Capacity: 60" x 0.104" @ 60,000 psi yield stress
Entry Driven Pinch Rolls
Number of Work Rolls: 19; 9 over 10
1.75" Dia. x 72" Face Rolls
7 Flights of Backups
5 Flights Motorized w/Joystick adjustment
125 HP DC Motor

-Looping Pit:
Entry and Exit Catenary Rolls
Crossover Table

-Pro Eco Roll Feed Unit:
Entry Strip Holddown
Entry Passline Rolls
Unico Drive

-Pro Eco High Speed Mechanical Shear:
Model: MCS104-60-300
Max. Capacity: 0.104"
300 Strokes/Min.
AC Drive Motor w/Air Clutch
Wichita Brake
Note: Shear was rebuilt ($50,000.)

-Pro Eco Runout Table:
Twin Driven Belts

-Pro Eco Stacker:
Powered Width Adjustment
Powered Length Adjustment
Scissors Lift Table w/Powered Conveyor Rolls
Side Discharge Design

-Exit Conveyor:
Powered Conveyor Rolls
w/15,000 lb. Built-In Scale

-Operator Control Panels:
