Cincinnati Slitting Line

Capacity: 72" x 0.250" Mild Steel
Coil Weight: 60,000 lbs.
Coil I.D. Range: 20" - 24"
Coil O.D. Capacity: 72"
Line Direction: Left to Right

Consisting Of:

-3-Arm Entry Turnstile:

-Entry Coil Car:

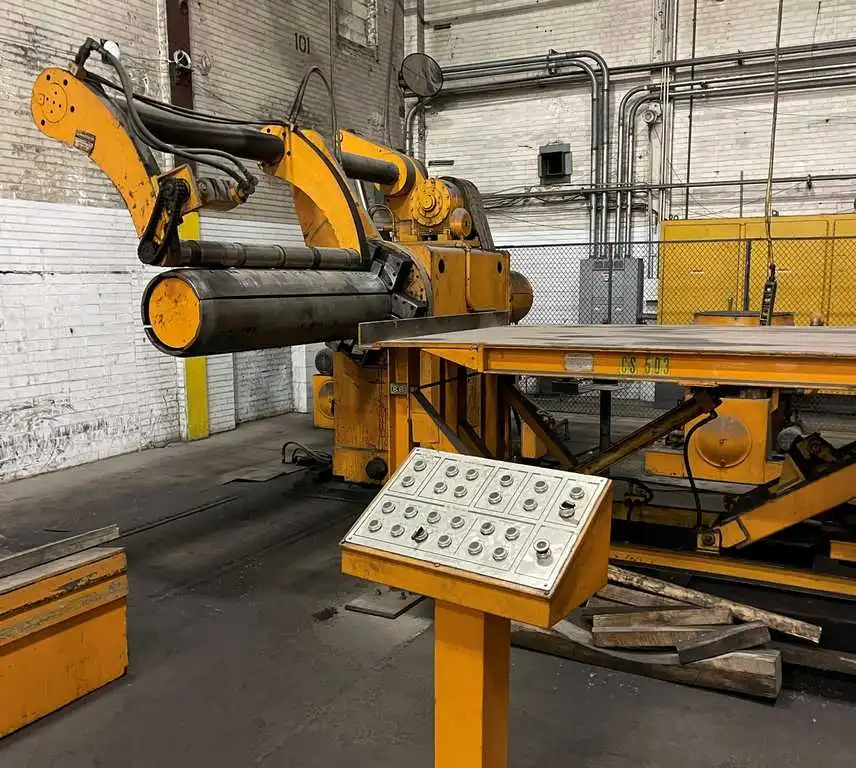

-Uncoiler:
Hydraulic Expansion
Threading Drive
Sliding Base
Powered Holddown Roll
Full Width Steel Roll w/Banding Slots
Wichita Water Cooled Brake
Water Cooler

-Peeler Table:
Hydraulic Cylinder actuated in/out, up/down

-Entry Table:
Entry Side Guides
Entry Driven Pinch Rolls
Thickness Gauge
Entry Hydraulic Crop Shear; 72" x 0.250" Capacity

-(2) Slitter Heads:
8" Diameter Arbors
Crane Removal Type Heads
Outboard Support travels in to approx. 48" for heavy gauge Slitting
125 HP DC Motor, 1150/2000 RPM, 500 V

-(2) Scrap Winders:

-Pit Table:

-Tension Stand: Combination Pad and Roll Type: Coiltech
Entry Separator Tooling Shaft
Entry Passline Roll
Tension Pad w/4 Hydraulic Cylinders for pressure
2nd Separator Tooling Shaft
Tension Rolls
Wichita Water Cooled Brake on Bottom Roll
Hydraulic Motor for Threading Drive

-Recoiler:
20" Diameter Drum
200 HP DC Motor, 850/2550 RPM, 500 V, w/Blower

-2-Arms Exit Turnstile:

-Exit Coil Car:
Self-Conatined Hydralics

-Main Operators Control Panel:

-Hydraulic Power Unit:

-Slitter Tooling:
Knives, Spacers and Rubbers
