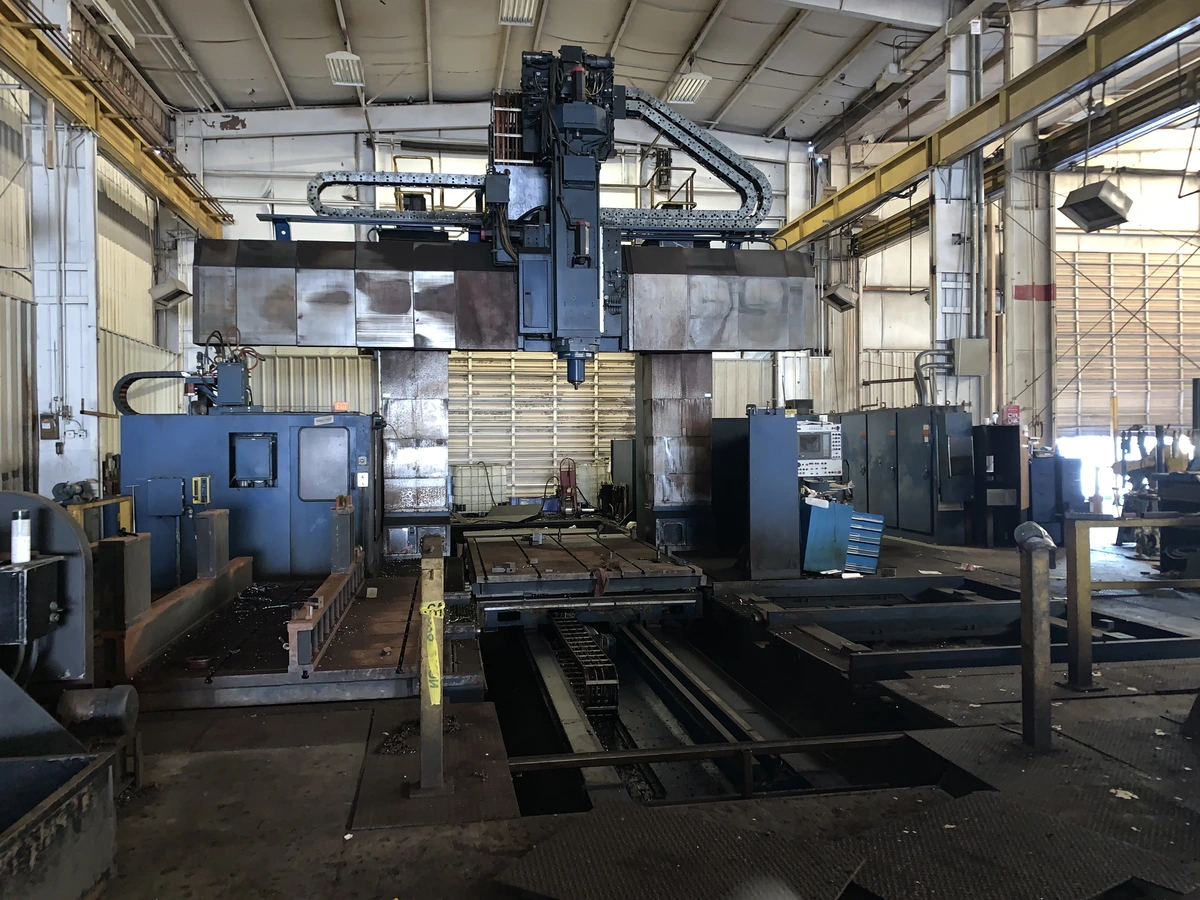

Ingersoll Rand Mastermill Machining Center
Vertical Machining Center
CNC Controlled 6-Axis Single Head Vertical Spindle Machining Center
Installed & Under Power
6-Axis Machine; 5 With Contouring
Spindle Speed: 20-4000 RPM
Continuous Power: 50 HP AC From 180 RPM
Ram Size: 23" x 24"(585mm x 610mm)
Ram Travel: 39.4"(1000mm)
Ram Thrust: 6600 LB(3000 kg)
Width Between Column Covers: 118.1"(3000mm)
Height From Pallet To Ram: 108.2"(2750mm)
Pallet Width: 98.4"(2500mm)
Pallet Length: 157.5"(4000mm)
Max Load Of Pallet Receiver: 88148 LB(40000 kg)
Bertsche 100 Pocket(#50 Taper) Tool Changer
CNC Controlled Straight & Right Angle Changing Capabilities
8-Station Spindle Transporter
