48" x 25,000 LB CTL Line

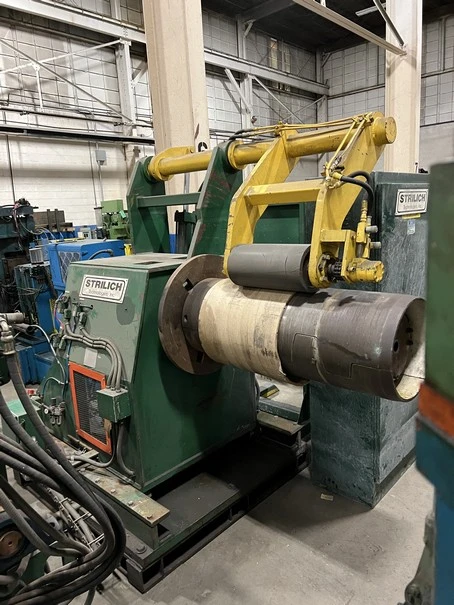

Single Mandrel Uncoiler:
Maximum Coil Width Capacity: 48"
Maximum Coil Weight Capacity: 25,000 lbs.
72" Maximum Coil O.D.
18.50"-24.50" Hydraulic Three Arm Mandrel Expansion Range.
Heavy Steel Cover leaves with tapered nose for easy coil loading.
Wedge type expansion provides coil stability and constant hydraulic
loading through the entire expansion range.
Designed for accessibility and easy maintenance.
Heavy Duty Construction.
Hydraulic powered urethane covered overarm snubber roll with banding groove.
Hydraulic feedup threading drive
Hydraulic slide base +/- 6" horizontal travel with manual control for
reel positioning.
Air Drag Brake, water cooled.

-Hydraulic Z-Type Peeler Table: 8' Long
Maximum Strip Width: 48"
Heavy Duty fabricated structural steel constuction.
1" thick beveled nose reinforced peeler plate.
Heavy duty hydraulic table positioning cylinders.
Cylinders piped to valve manifold.
Free-standing operator control console.

-Adjustable Entry Guide:
Maximum Material Width: 48"
Heavy duty welded structural steel frame.
Four sided hardened guide plates are mounted on heavy duty machined
steel blocks with acme nuts.
Guides are adjusted off center line through left and right hand
acme screws via handwheel.
Makes the initial centerline threading of the lead edge into the
straightener pinch rolls easier.

-Combination Dual Work Roll Straighteners on Common Base:
Maximum Strip Width Capacity: 48"
Material Thickness Capacity: 0.040" - 0.190"
4" Dia. and 6" Dia. Work Rolls
Common Variable Speed AC Vector Drive geared for 125 FPM Max. Roll Speed
7 Work Rolls (3 over 4) - hardened and ground work rolls in each machine.
Powered 6" Diameter Air Loaded Entry Pinch Rolls
All work rolls and pinch rolls are chain driven.

-Flying Cutoff System:
Hydraulic Cutoff Die complete with D2 HC-HC cutoff blades.
Rack and Pinion Die Accelerator.
Indramat Closed Loop DC Servo Drive and Control.
Cutoff Die mounted on precision ball type slide ways.
Roller Sheet Support Tables supplied.

-48" x 144" Belt Type Transfer and Inspection Conveyor:
AC Variable Speed Drive
Wheels and track to manually pushoff line to one side of the
machine in order to provide access to permit changing the
shear blades on the flying shear.

-Drop Type Sheet Stacker:
Air operated drop arms and bell mouth side pans adjusted off
center line.
Air operated back tamper.
48" x 150" hydraulic lift table complete with powered roller
top conveyor for end discharge.

-Pallet (Side) Loader to feed pallets into stacker from front
side location:
Supplied pallets loaded on table are pushed into stacker.
Hydraulic driven rack and pinion pusher table.

-Main Operator's Control Station and Electrical Cabinets:
Meter which indicates machine speed in ft/Min.
Device which will permit operator to preset the number of parts
to be cut and which will then stop the machine when preset
number of parts has been obtained.

-Ancillary Items
Electrical Drive Enclosure (x2)
Electrical Transformer
Main Operators Control Station with Remote Station
Uncoiler Drag Brake Heat Exchanger Unit
Entry/Exit Hydraulic Pumping Units
Shear Head Hydraulic Pumping Unit
