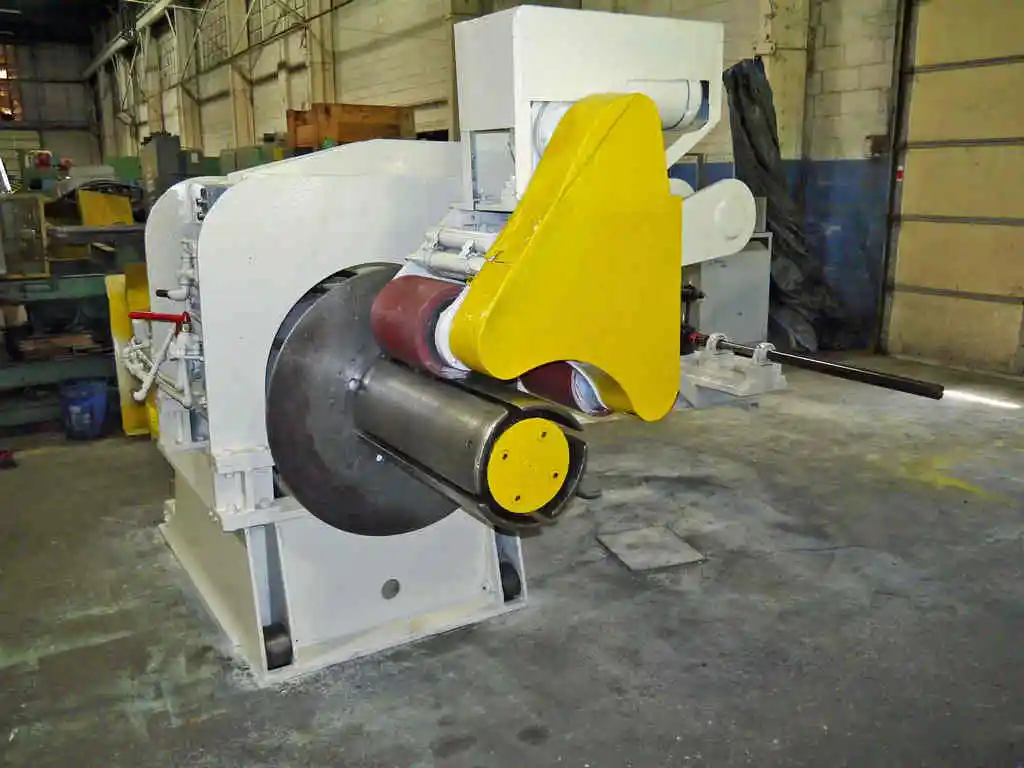

Used CMP 3020 | Uncoiler

-4 Segment Mandrel
-29.5" Face Segments
-8" Dia. Shaft at Forward Bearing
-Air Cylinder Powered Expansion, 20" Bore x 4" Stroke
-13.5" - 16.5" Expansion Range
-Powered Holddown Roll
Dual Polyurethane Covered Rolls
AC Motor thru Reducer
-50" O.D. Max.
-Wichita Water Cooled Brake
-Attached Paper Winder
Air Motor Powered
-Passline: 34.5" from Floor to center of Mandrel
-Line Direction: Right to Left
-Overall Size: -4 Segment Mandrel
-29.5" Face Segments
-8" Dia. Shaft at Forward Bearing
-Air Cylinder Powered Expansion, 20" Bore x 4" Stroke
-13.5" - 16.5" Expansion Range
-Powered Holddown Roll
Dual Polyurethane Covered Rolls
AC Motor thru Reducer
-50" O.D. Max.
-Wichita Water Cooled Brake
-Attached Paper Winder
Air Motor Powered
-Passline: 34.5" from Floor to center of Mandrel
-Line Direction: Right to Left
