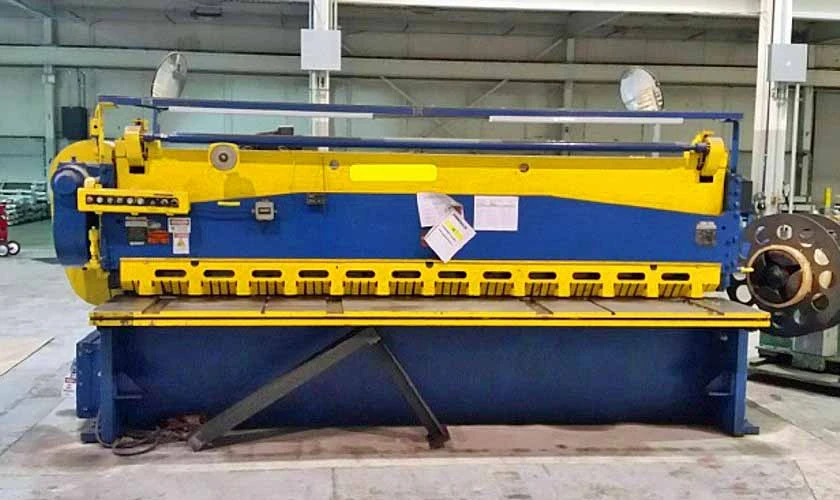

12' x 3/8" Squaring Shear
Power Squaring Shears (Inch)
| Max Thickness | 0.375" |
| Length of Blade | 12' |
| Hyd/Mech | Mech |
| Back Gauge | 48" |
| Power | 15 hp |
| SPM | 55 strokes/min. |
| Dimensions | 185" L x 95" W x 87" H |
| Weight | 33,000 LB |
Capacity 3/8" x 12'
Distance Between Housings 12'4"
Blade Length 148"
Throat Depth 18"
Blade Size 1" x 4"
Speed Strokes per min. 55
Blade Rake per foot 5/16"
Flywheel Speed - RPM 1100
Type Mechanical
Back Gauge Front Operated Manual Backgauge with Indicator
Motor Drive HP Required 15
Voltage 460V, 3PH, 60HZ
Front Operated Manual Back Gauge With Indicator
Foot Pedal
Sof-Loc Holddown System
