52" x 40,000 LB Loopco Slitting Line

Entry Coil Car: Revolvator
40,000# Capacity
60" wide Bed
72" O.D. Capacity
(2) - 5" bore hydraulic lift cylinders
Lift: Approx. 16"
Self-contained hydraulics
3 HP AC motor
Each axle individually driven by hyd. motors
Pushbutton control
Approx. 12" from floor to bottom of "V" cradle
Removable 5" high riser on bed
Overall size: 90" L x 64" W x 89" High

-Uncoiler:
20" - 24" I.D.
Hydraulic Expansion
Pumpkin Tooth Mandrel
54.5" Face Mandrel
Powered Holddown Roll w/Rubber Covered Roll
AC Motor Threading Drive w/Air Clutch
Sliding Base
Wichita Water Cooled Brake
Water Cooler for Brake
Passline: 40" from Floor to Center of Mandrel
Overall Size: 150" L x 74" W x 93" High

-Entry Unit:
Threading Table
Pinch Rolls, 8" Dia. x 56.5" Face Rolls, Idler Type
Side Guides, Manual Adj.
Passline: 47"
Overall Size: 84" L x 50" W x 75" High

-Crop Shear:
58" Long Blade
Hydra-Mechanical Upcut Type
10" Bore Hydraulic Cylinder
Entry Passline Roll
Spring Loaded Holddown
Passline: 49"
Overall Size: 109" L x 35" W x 81" High

-(2) Slitter Heads:
Crane Type Removable Heads
Single Eccentric Arbor Adjustment
(1) - 9" Dia. x 55" Face Arbors
Entry Table
(1) - 6" Dia. x 55" Face Arbors
Entry Side Guides, Manual Adj.
Entry Passline Rolls, 4" Dia. x 59.75" Long
75 HP DC Motor, 500/2000 RPM, 500 V, w/Blower
30 HP AC Motor Threading Drive, 1760 RPM, 230/460 V
Alten Reducer w/1.837:1 Ratio
Overall Size: 9" Head: 128" L x 57" W x 81" High, 15,000 Lbs.
6" Head: 122" L x 50" W x 69" High, 10,000 Lbs.
Drive: 150" L x 46" W x 47" High, 7,500 Lbs.

-(2) Scrap Winders:
Approx. 25" W x 26" Dia. Scrap Ball Capacity
Hydraulic Motor Driven
Self-Contained Hydraulic Power Unit
15 HP AC Motor, 1760 RPM, 230/460V
Overall Size: 84" L x 52" W x 49" High (Each Winder)

-Pit Cross Over Table:

-Tension Stand: Stamco
Clam Shell Design
Hydraulic Cylinder Open / Close
Entry Separator Tooling Bar
(Not attached to Frame)
Exit Passline Rolls - Rubber Covered
Top Roll - 66" Face x 14" Dia.
Bottom Roll - 62" Face x 6" Dia., Driven for Threading
by Hyd. Motor
(2) Sets of New Pressure Boards
(Less Felt/Carpet Covering)
Air Bag Included
Machine No. 4461
Overall Size: 106" L x 39" W x 53" High

-Free Standing Overarm Separator:
Deflector Roll
Threading Table to Recoiler

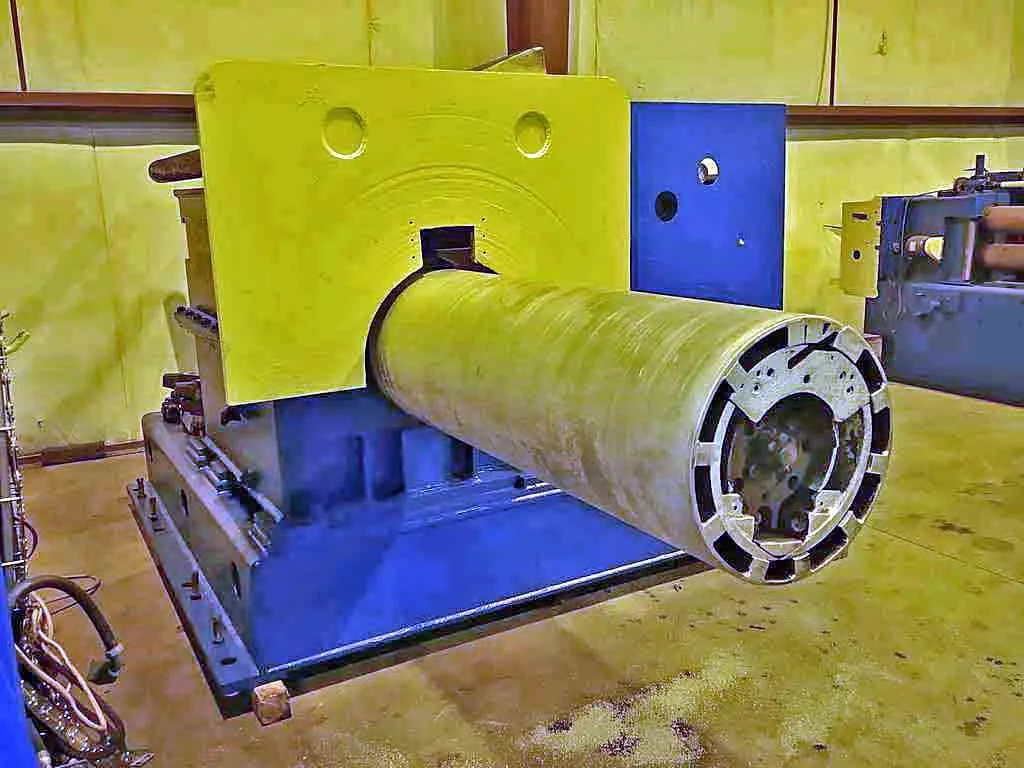

-Recoiler:
16" Dia. x 58" Face Drum
20" Dia. Bolt On Pad
22" Dia. x 57" Face Spare Drum
Hydraulic Clamp and Expansion
12" Dia. Main Shaft
Hydraulic Pushoff
Lufkin (2) Speed Gear Box w/10.6:1 and 31.7:1 Ratios
200 HP DC Motor, 500/2000 RPM, 500 V w/Blower
Air Operated Holding Brake
Passline: 40" from Floor to Center of Drum
Overall Size: 180" L x 102" W x 92" High

-Hydraulic Power Unit:

-Electrical Panel: Eurotherm DC Drive:

-Misc. Tooling Included.
