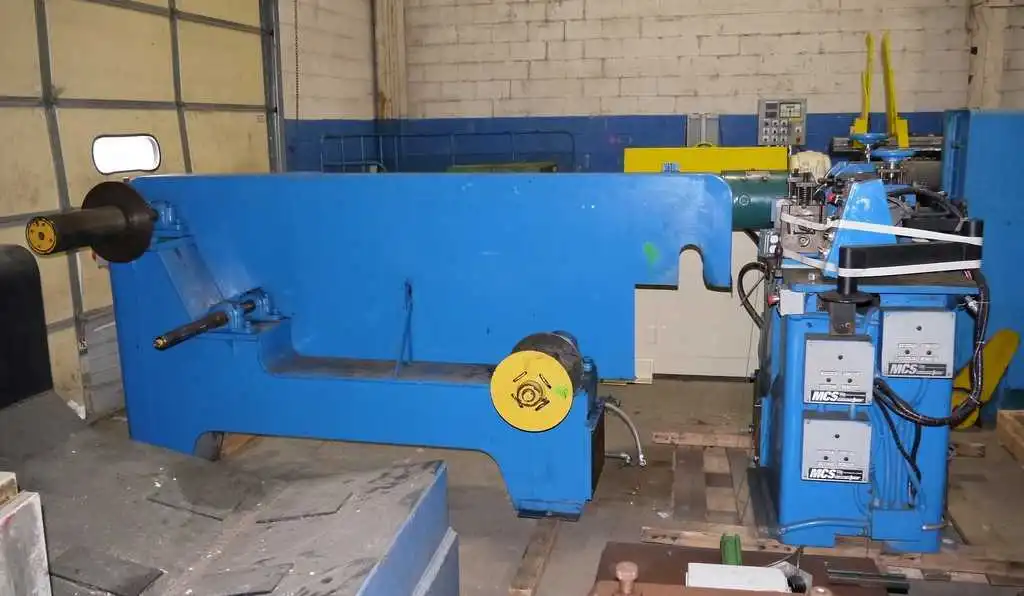

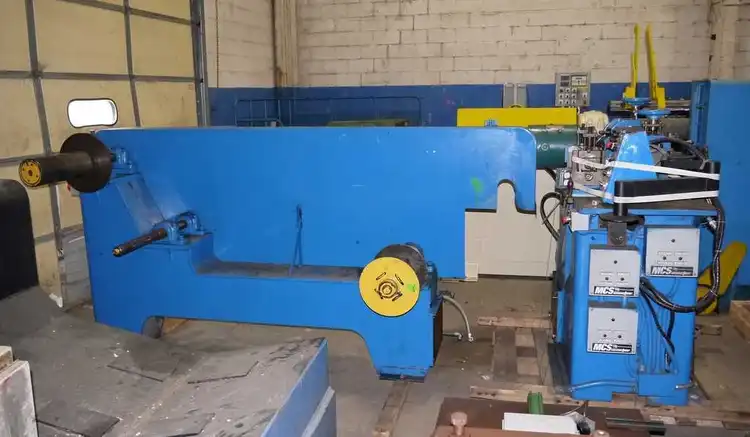

10" x 0.875" x 1,000# Ruesch Slitting Line

Ruesch Model #189 Slitting Line

-Thickness Range: 0.0005" to 0.020"
-Speed: 300 FPM Max.
-Line Direction: Right to Left

Consisting of the following:

-Uncoiler: Rapid-Air
Model: RA1512
1,500# x 12" Capacity
Manual Link-Type Expansion
14" - 22" Expansion Range
Powered by 1/2 HP AC Motor, 115 V, 1 Ph.
Loop Control Arm
6 Coil Keepers
48" Coil O.D. Capacity
Passline: 33" from Floor to Center of Mandrel
Overall Size: 43" L x 40" W x 57" High
675 Lbs.

-Ruesch Slitter Head:
10" x 0.875" Arbors
Steel Stripper Ring Assembly
Burr Masher at Exit
Independent Arbor Adj.
5 HP DC Motor - 2500 RPM
Reliance R.A. Reducer w/6:1 Ratio

-Integral Recoiler Base:
Scrap Winder, 10" Wide x 6" ID & 12" OD Ball Capacity
Air Brake for Tension Control
Driven by Chain from Slitter Head
2 Rewind Shafts, 2" Diameter
1 Recoiler Drum - Solid Drum, 6" Dia. x 17" Face

-Reliance Controls:

-Reliance Operator Station:
