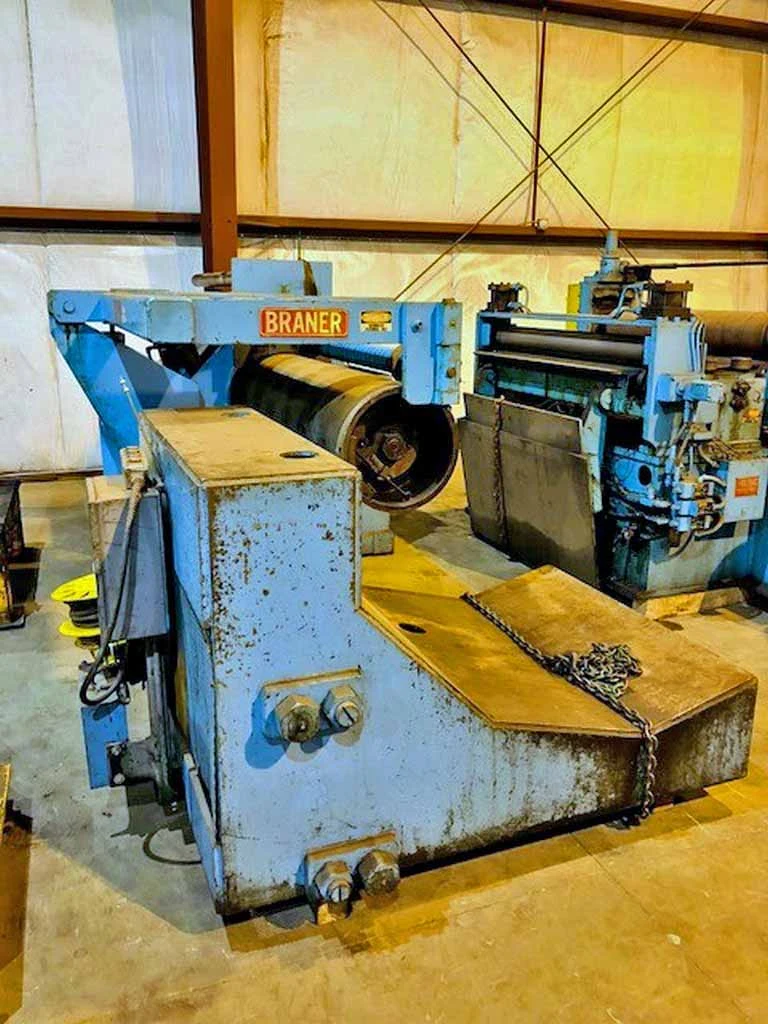

54" x 20,000 LB Slitting Line

-Entry Coil Car:
Above Floor Type
48" Wide Bed
72" O.D. capacity
Approx. 12" from Floor to bottom of "V" Cradle
3 HP Self-Contained Hydraulics
7" Bore x 20" Stroke Hydraulic Lift Cylinder
5" Dia. McGill Camrols
Cable Reel
Hand Pendant Control
Overall Size: 82" L x 58" W x 50" High

-Uncoiler:
Hydraulic Expansion
20" - 24" Coil I.D.
4 Segment Mandrel, 57" Face Width
Powered Holddown Roll (Full Width Roll)
Hydraulic Motor Threading Drive
Sliding Base
Wichita Water Cooled Brake
Passline: 41" from Floor to center of Mandrel
Overall Size: 167" L x 54" W x 74" High

-Peeler Table:
6" Dia. x 58" Face Rolls
Hydraulic Cylinder Up/Down, In/Out

-Entry Pinch Rolls:
Bottom Roll Driven by Hydraulic Motor

-Entry Side Guides:
Manual Adjustment

-Slitter Head:
6" Dia. x 56.5" Face Arbors
Parallel Arbor Adjustment
Knife Diameter Range: 9" - 11"
5 HP AC Motor Threading Drive
1740 RPM, 230/460 V
Foote Jones Reducer W/105.9:1 Ratio
Passline: 45.5"
Overall Size: 140" L x 64" W x 77" High

-Scrap Chopper: Yoder
7.5 HP AC Motor Driven
1745 RPM, 208-230/460 V
Overall Size: 98" L x 26" W x 34" High

-Scrap Conveyor: Livonia Magnetics
0.5 HP AC Motor Thru Reducer, 1725 RPM, 230/460 V
Overall Size: 140" L x 26" W x 49" High

-Recoiler:
20" Diameter x 64" Face Drum
Powered Clamp and Expansion
Hydraulic Pushoff
Overarm Separator
50 HP CMC DC Motor, 1750 RPM, 500 V
Reducer W/43:1 Ratio
Passline: 42" From Floor to center of Drum
Overall Size: 168" L x 76" W x 73" High

-Exit 2 Arm Turnstile:
59" Useable Arm Length
C-Hook Type Arms
5" W x 11.5" High C-Hook Slot
Manual Rotation
Passline: 49.5" from Floor to Top of Arms
No Pushoff
60" Dia. Base
Overall Size: 142" L x 60" W x 49.5" High

-Main Operators Panel:
Overall Size: 26" L x 24" W x 51" High

-Slitter Tooling:

-CMC Drive Panel:
Overall Size: 36" L x 14" W x 62" High

-Main Hydraulic Power Unit:
20 HP AC Motor

-Drawings Included:
Mechanical/Electrical
Foundation

-Spare Parts:
Wichita Water Cooled Brake
Motor for Hydraulic Power Unit

-Line Direction: Right to Left
