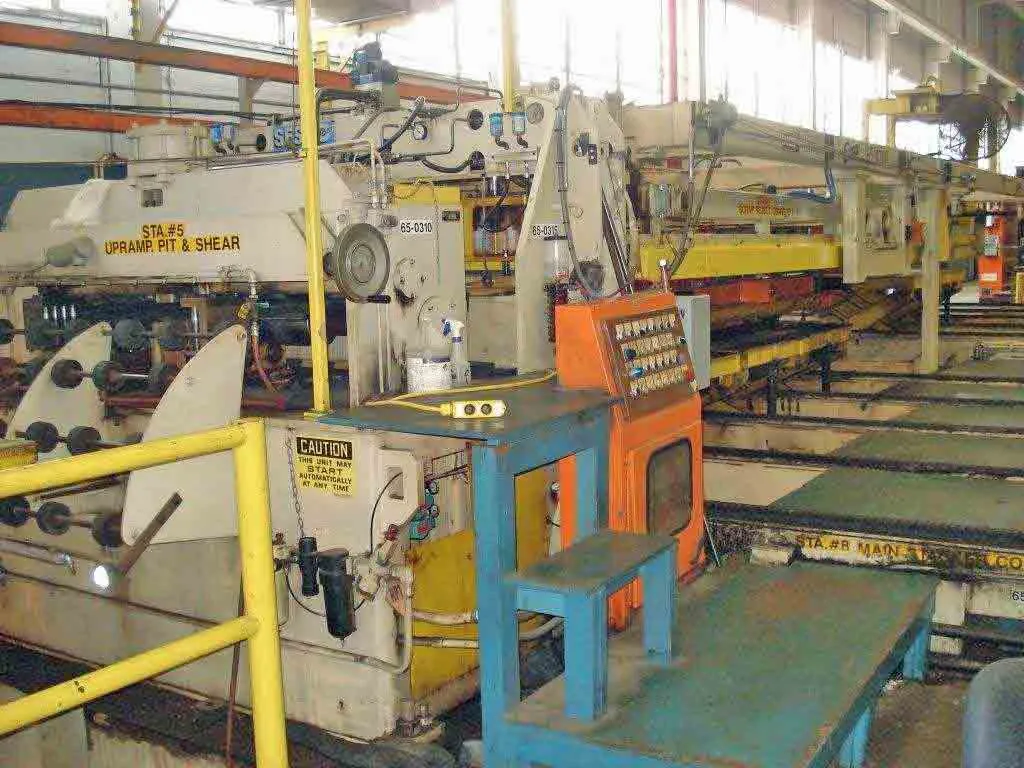

Sesco/Voss CTL Line
Cut To Length Line-Entry Coil Car/Upender: Sesco
Electro-Mechanical
Hydraulic Operation
-Uncoiler: Sesco
40,000 lb. Capacity
Hydraulic Expansion
3 Segment Mandrel
Holddown Arm
Threading Drive
Brake
-Peeler Table: Sesco
Hydraulic Cylinder Actuated
-Precision Leveler: Herr Voss
6 HI
Model: Keystone 72/1.156-19/11, 6 HI, LH
Capacity: 0.015" - 0.060", 40,000 PSI Yield
19 Work Rolls
1.156" Dia. x 72" Face Width
11 Flights of Backups
9 Flights Motorized with Joystick Controls
50 HP Reliance DC Motor
1750/2100 RPM, 500 V
Line Speed: 200 FPM Max.
-Runout/Inspection Conveyor: Rowe
Model: CVR-50-12
Entry Driven Pinch Rolls
12' Long Belt Conveyor
Variable Speed Drive
-Pneumatic Pit Threading Table: Sesco
-Servo Feed: Sesco
Entry & Exit Side Guides
Manual Adjustment
Indramat Servo Motor, 12 HP AC
Feed Accuracy +/- 0.005"
Trabon Automatic Lube System
-Shear: Sesco
Straight Rake Top Blade
4 Edge Blades
Hydraulic Cylinder Actuated
-Stacker: Sesco
Capacity: 12" - 144" Long Sheets
Sheet Support Rollers
Powered Lift Table
Air Blower
Side Discharge
-Pallet Insertion System: Sesco
Entry Chain Conveyor
Exit Chain Conveyor
